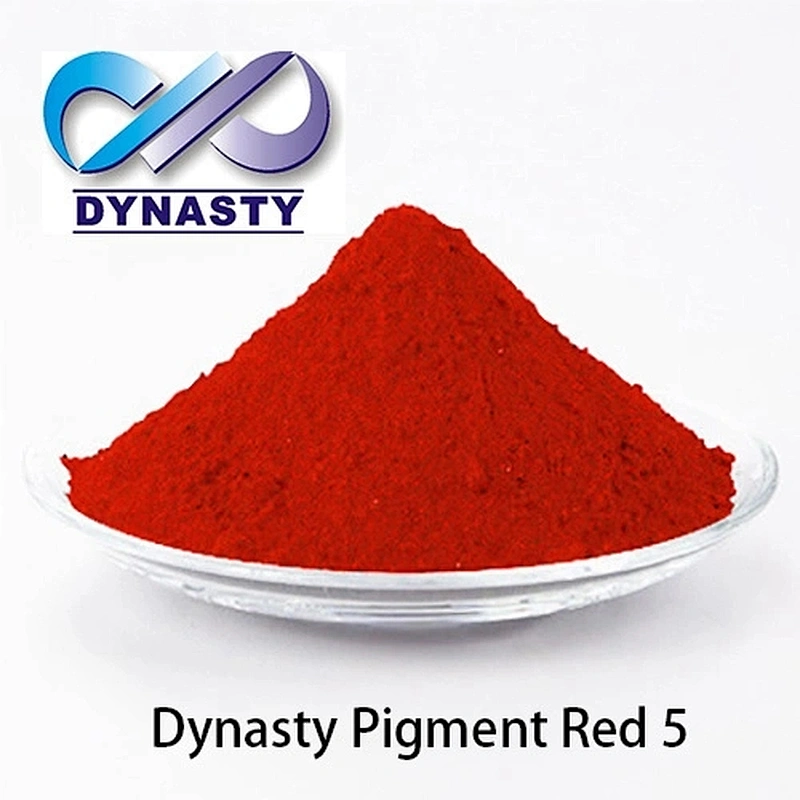

Pigment red 5

Pigment Red 5
Product Name: Pigment Red 5
Trade Name: Dybrite Pigment Red 5
Synonyms:[4-[2-[5-chloro-4-methyl-2-(sulfo-ko)phenyl]diazenyl-kn1]-3-(hydroxy-ko)-2-naphthalenecarboxylato(3-)]-manganate(1-) hydrogen (1:1);C.I. 15865:4;pigment red 48:4;Manganese, 4-[(5-chloro-4-methyl-2-sulfophenyl)azo]-3-hydroxy-2-naphthalenecarboxylic acid complex;PR48:4 RED 2B MANGANESE;Fast Red 2BL;Pigment Red FBL;Pigment Red H2BA
C.I.Name / No.:Pigment Red 5
EINECS No.: 226-102-7
Chemical Family: Mono azo
Molecular Weight: 473.74
Molecular Formula: C18H11ClMnN2O6S

Pigment Red 5 Properties

Test Items	Specification
Hue or Color	Brilliant blue and red
Bulk Density	11.6-12
Melting Point	306
Average Particle Size	0.1
Particle Shape	Flake
Specific Surface Area	43-48
PH Value	5.5-8.0
Oil Absorption	45-71
Hiding Power	Translucent
Residue on 80 Mesh	5.0% max
Water Soluble	1.5% max
Volatite 105 °C	1.5% max
Tinting Strength	100-105%

Pigment Red 5 Application
Mainly used for the coloring of ink, paint,Pigment printing paste, plastic latex and paper.
We have various pigment grades and properties to meet different customers' needs, please specify your application and requirements so that we can recommend accordingly.  E-mail: info@dynasty-chem.com

Note: The data contained here are based on our current knowledge and experience. It is the responsibility of user to test our products before the final application.
